§ 5 - Mounting To Wood Surfaces

Back to → Main Power Block Page
Back to → Main Mixer Block Page

If you're building into a wood case or for a wood surface, you can use these:

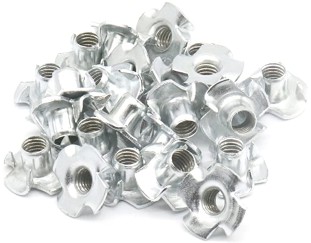

binifiMux 100 Pieces M3x6mm Carbon Steel T-Nuts Zinc Plated 4 Pronged Tee Nut

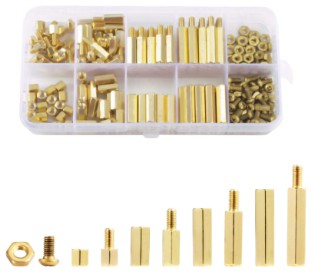

Litorange 240 Pieces M3 Male Female Hex Brass Spacer Standoff Screw Nut Threaded Pillar PCB Motherboard Assortment Kit


You'll need the following:

Here's the process:


3/16ths (or 5 mm) drill bit sized for t-nut center well

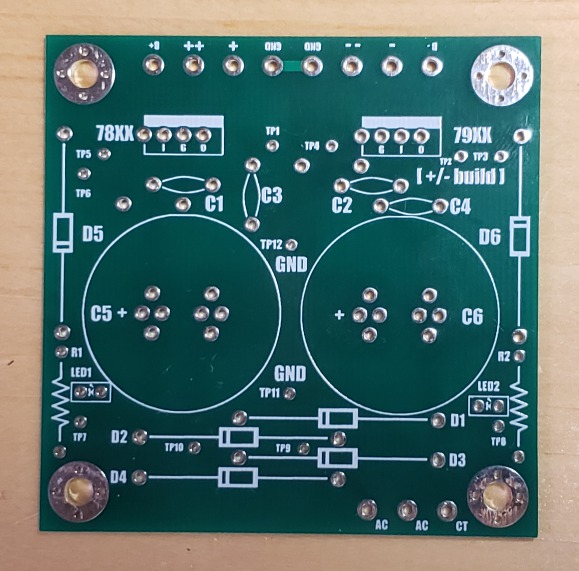

Use the PCB as template to mark the mounting points



Mounting surface after marking

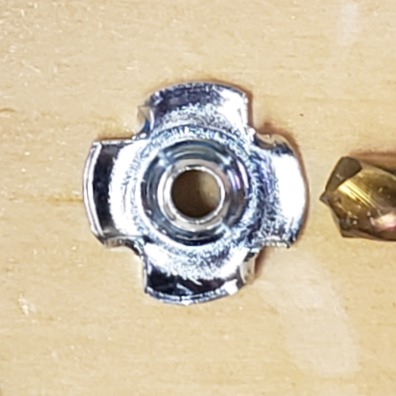

Drill on-center within the markings, and hammer in the t-nuts

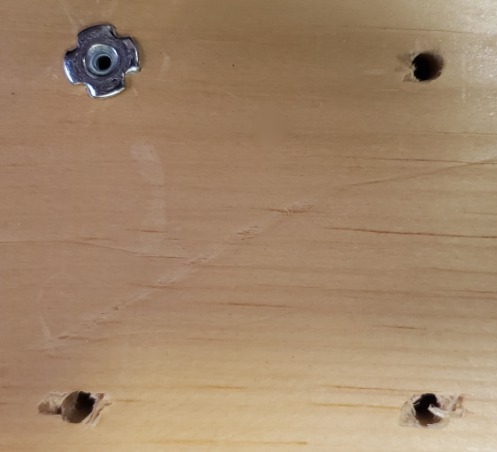

You end up with this

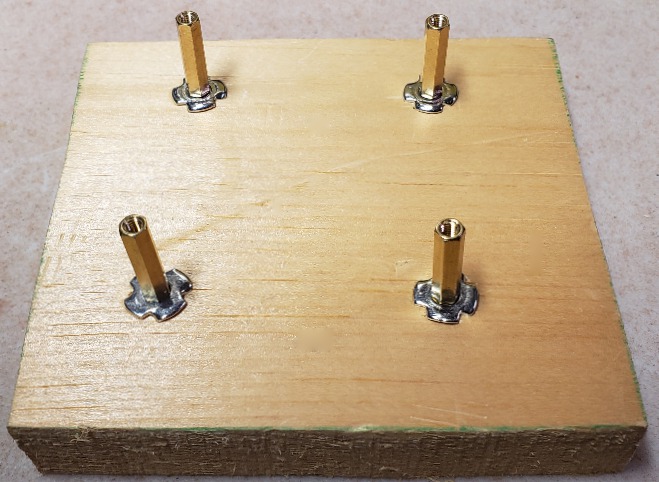

Screw the M3 standoffs into the t-nuts



Once the PCB build is completed, attach it to the standoffs with M3 screws
